As we all do, the search for a good and easy way to clean track can cause us to try all sorts of things. Of course, one way is to use the Peco track rubber or other brand, another is to use what used to be known as an ink rubber (eraser), a slight abrasive was bonded in the rubber. I have noticed that these are very hard to get anymore which is a pity as they were better than the Peco rubber. I am not going to get into the argument about the abrasive rubbers scratching the rail head as my track is long past protecting from that potential issue.
One thing I have always done is to use a 38mm paintbrush and drag it along the track at about 45 degrees to remove dust which I believe is a major part of dirty track. Combine dust with some conductivity fluids and you make the grey stuff that builds up on the wheels. Anyway, that’s my theory. The dust by itself can also cause erratic power pick up and running. I will use the brush if I haven’t run the layout for a few weeks.
In regards to conductivity, I started decades ago by using CRC 2-26, an electrical conductivity spray, this certainly works well but must be applied sparingly and away from grades. I applied it to about 50cm of each rail on level track in several places around the layout as well as on the point blade and stock rail contact areas of points. I did find many years later that it can build up to a slightly sticky form at the point blade contact areas and start to restrict blade movement. This was rectified with an application of enamel paint thinner on a cotton pipe cleaner. This is how I enhanced conductivity until I started looking for other ways several years ago.
The next trials involved the use of graphite pencil sticks which seemed to work well but also had to be kept away from the layout grades. These can be found in art supply shops.

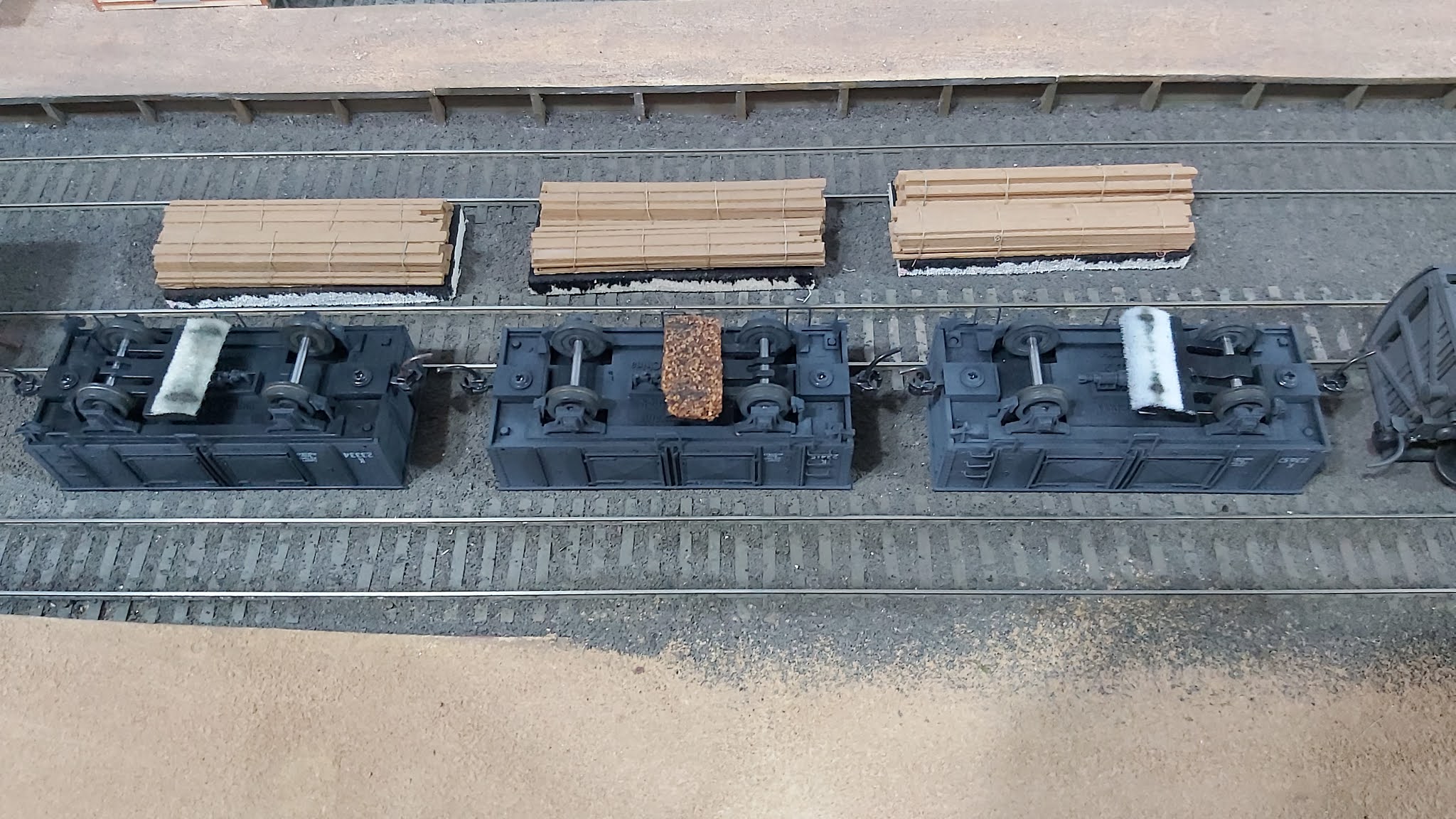

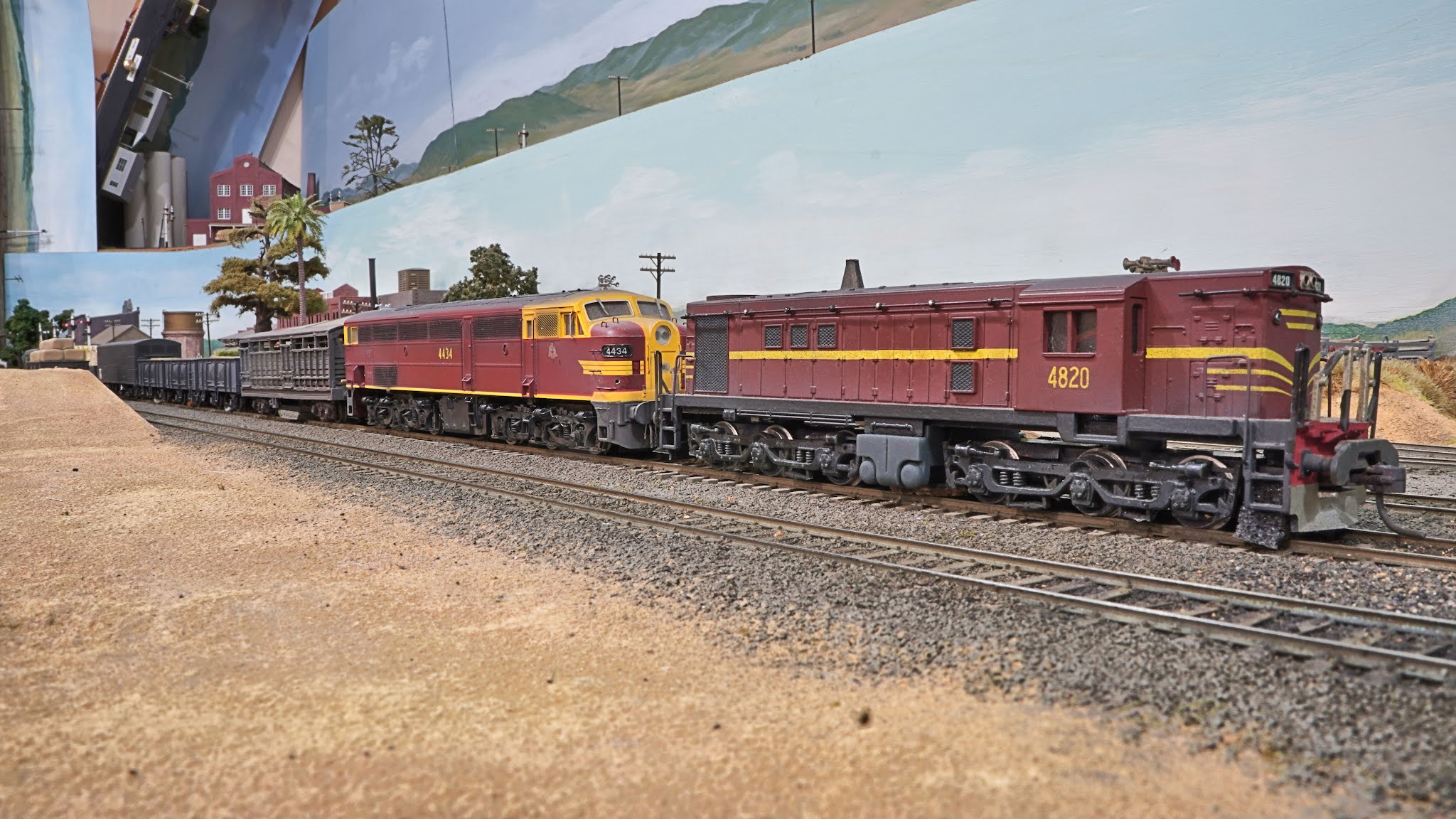

My latest efforts involve a geared motor rotating a cleaning pad against the rail tops. This motor is built into an NSWGR 48 Class HO model that runs as a dummy with another diesel locomotive, usually a Trainorama 44 Class. Behind the diesel locomotives are several wagons that have other track wiping and cleaning fittings.
Here are some photographs that show what I mean.

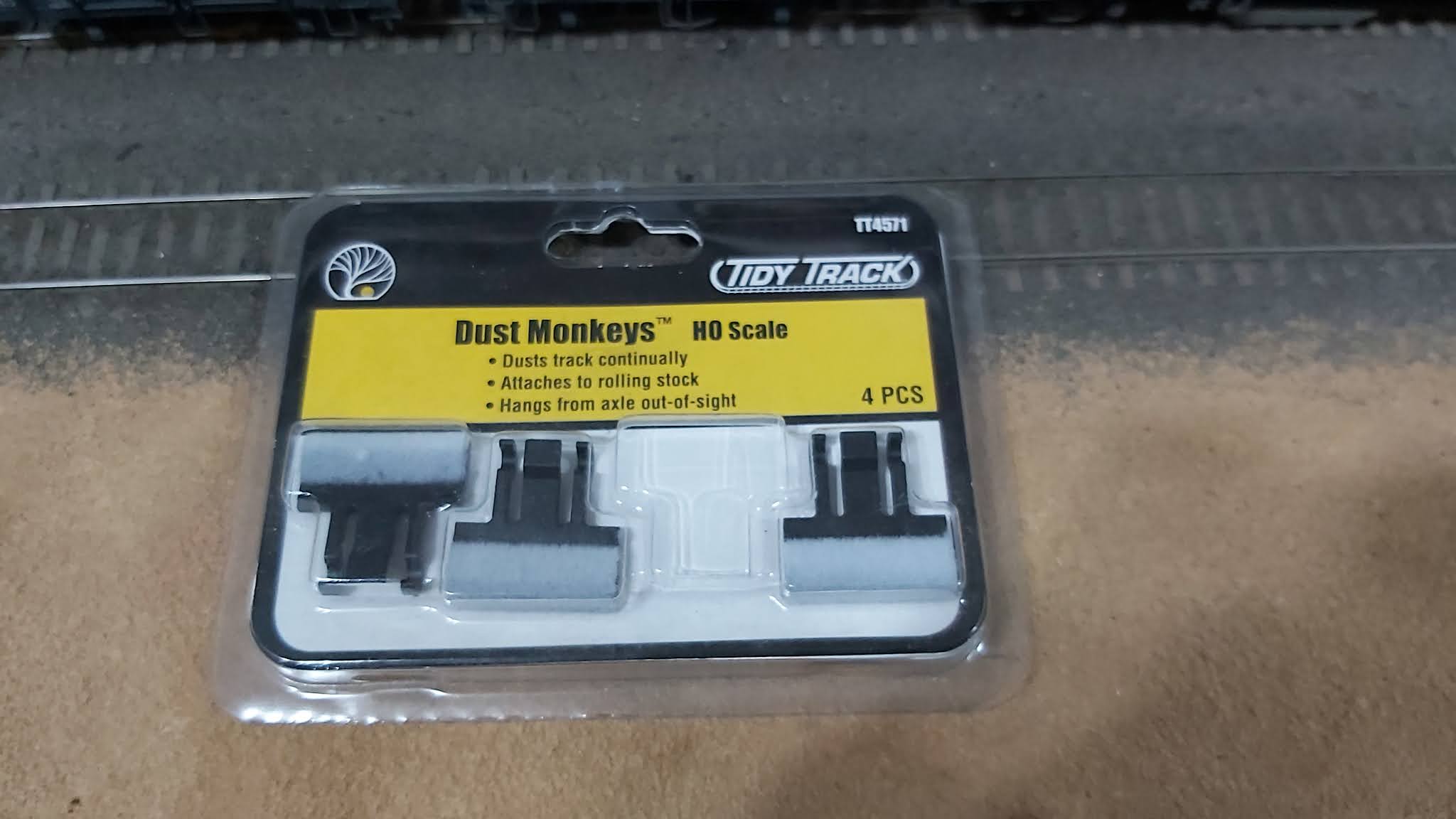

The cork disc and the cork on the Dust Monkey have a small amount of CRC 2-26 electrical conductivity fluid applied to them before operating. The CRC 2-26 can also be applied to the rails in a number of places around the layout to rejuvenate the cork. Any buildup of the grey dirt from the track can be cleaned from the cork carefully with some enamel thinner. Be careful not to saturate the cork with the thinner as it may cause the glue holding the cork on the plastic to soften. I use a cotton pipe cleaner to clean the cork.
The 48 Class has a piece of grey sponge mounted behind the leading cowcatcher to wipe the dust away before it can get on the locomotive’s wheels and cause problems. I am still looking for a small brush arrangement to replace the foam.
The motor that spins the cork disc is a 1000 rpm geared 12volt DC motor that can be found here (at the time of this post of course):
Or
The body of the 48 Class is an old Trax body and the chassis of the 48 Class is made of several 3D prints. The non-powered 48 Class bogies are from the early Trax 48 Class and I have used two of them. They clip into the 3D printed chassis the same as they did on one end of the Trax 48 Class. It was lucky that I kept the Trax 48 Class chassis’ when I made new mechanisms some time ago. See the blog post here.
The prints were done on a 3D filament printer except for the fuel tanks which were done on a resin printer. The fuel tanks might work on a filament printer with appropriate orientation and supports.

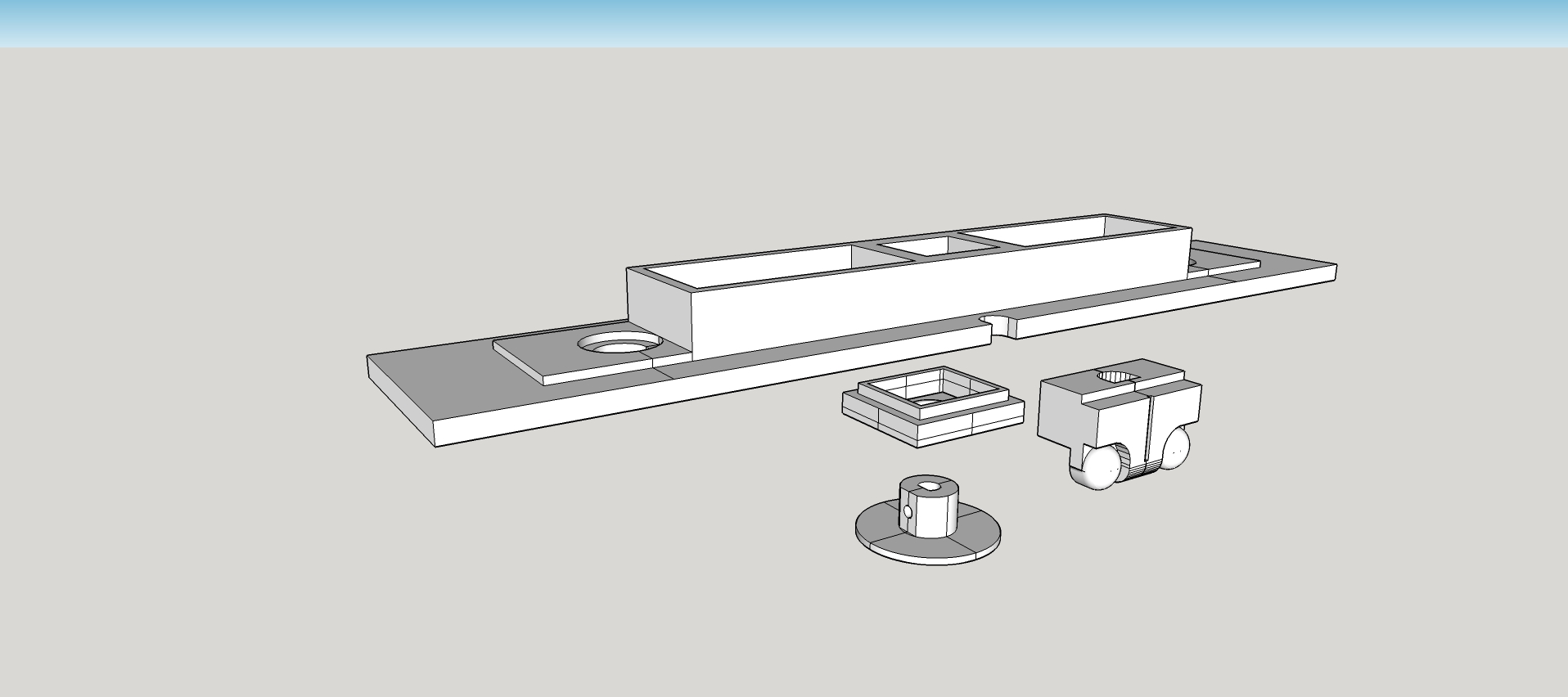

If anyone is interested and has an old Trax 48 Class body and a couple of the non-powered Trax 48 Class bogies then here are the STL files of the chassis parts and the fuel tank side (two required).
The chassis parts were printed flat on the bed of the filament 3D printer.
Of course the adventurous could always design and print the bogies and use the white metal bogie side frames if they are still available.
The motor sits relatively loosely in the centre square hole and the square part below the chassis is glued into the chassis to retain the motor. The fuel tanks screw onto the chassis and retain the body. The disc slides onto the motor shaft which has a flat keyway. The disc can move up and down under its own weight but a small piece of foam is used to apply slight downward pressure. Too much pressure can stop the motor from rotating. The longer two box shapes can be used for some weight and/or a place to put the DCC decoder. Although my 48 Class isn’t fitted with a Keep Alive as yet it would be a good addition.

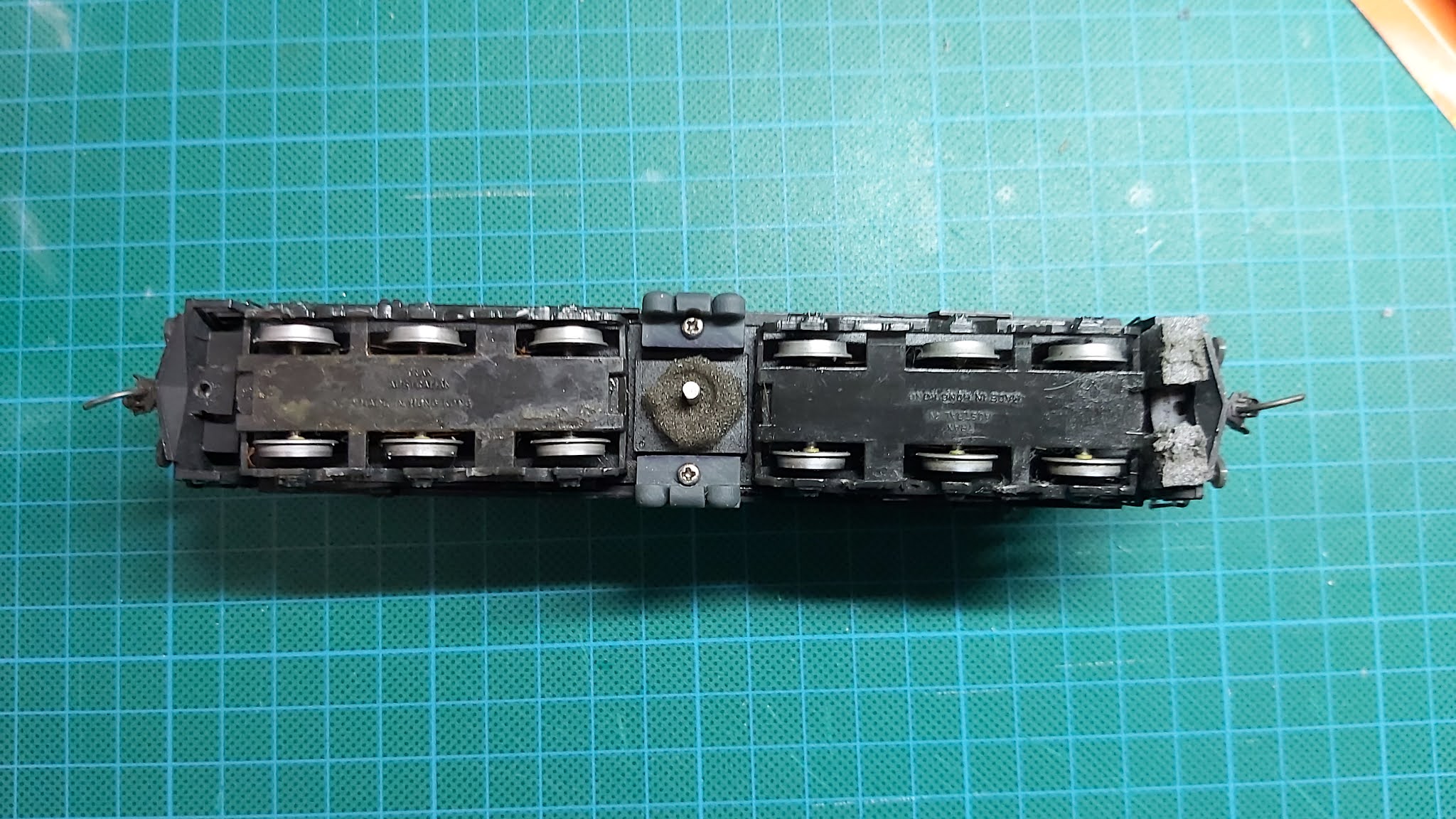

2000 grit Wet and Dry and the last one has glue on it from a covering I removed.Under chassis view showing a piece of foam that exerts
a slight downward pressure on the disc.

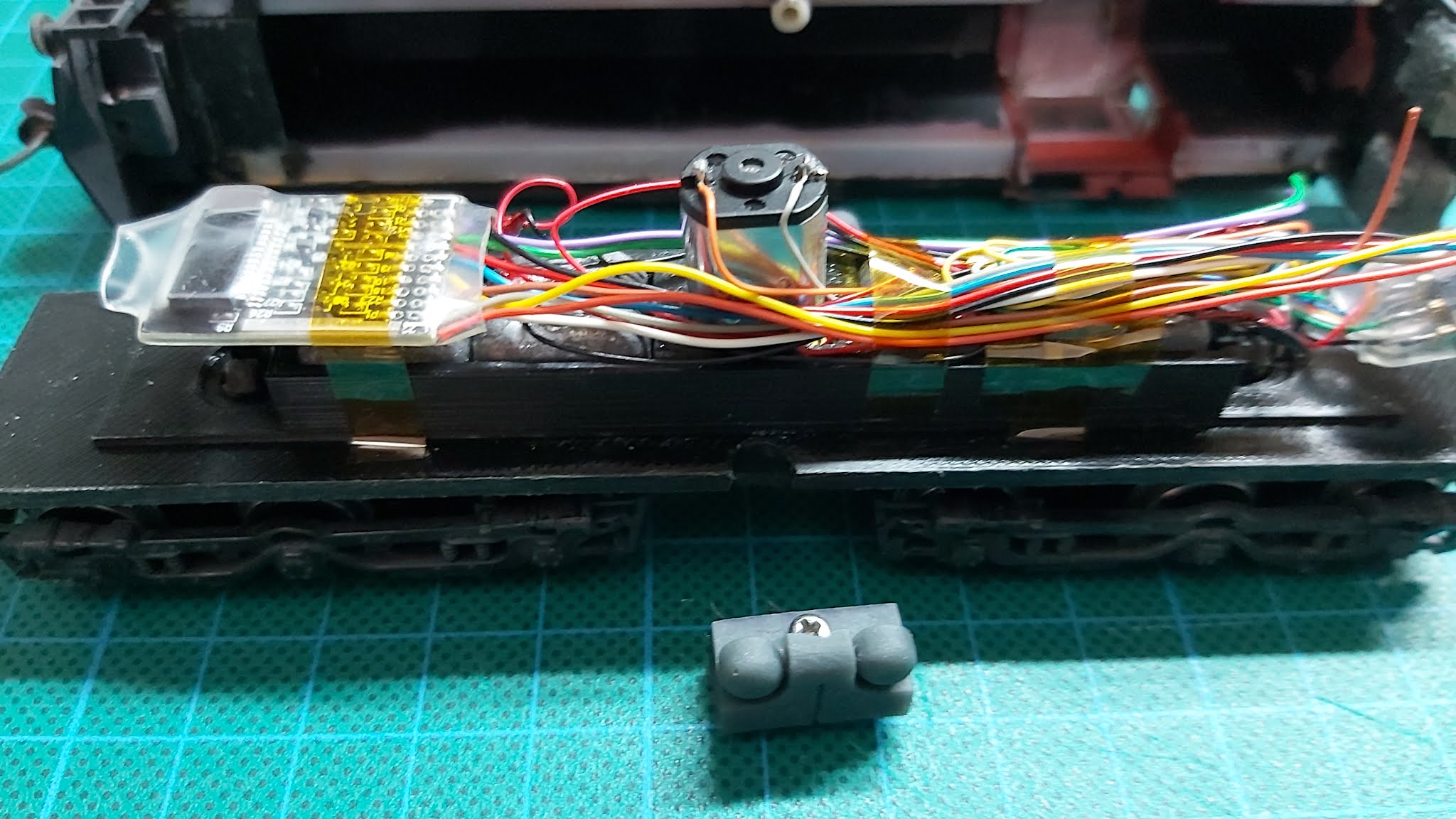

View showing motor sitting in the square box mounting.

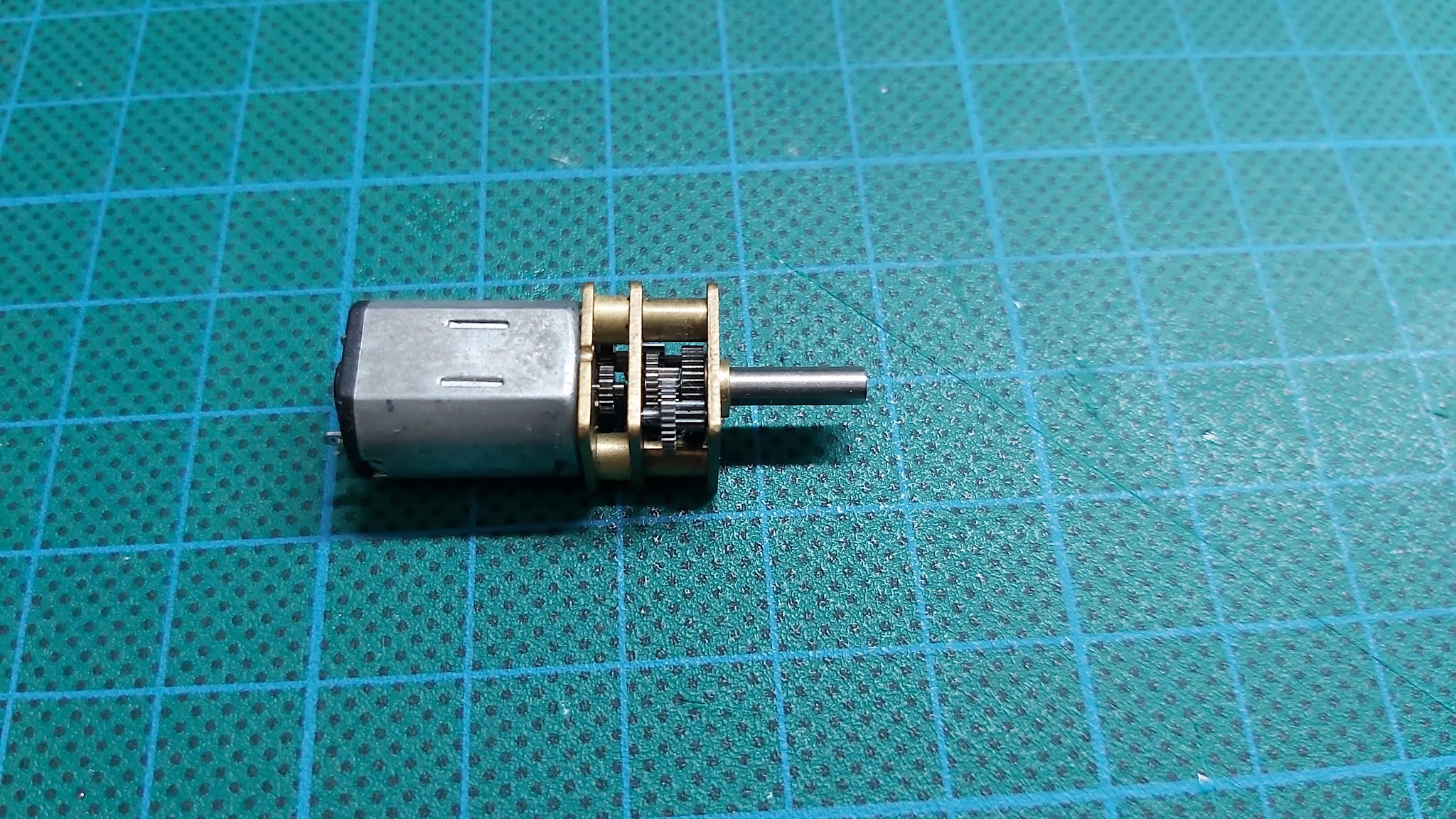

1000rpm 12 volt motor
If your diesels are having intermittent power pick up issues then have a look at this earlier post where I put forward a theory about it and solve it with some easily fitted power pickups.
